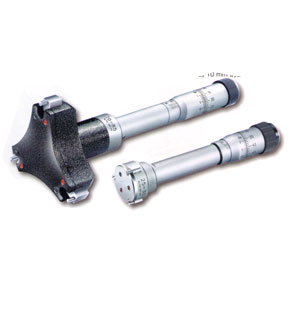

德国德莎TESA品牌内径千分尺产品特点：
三线接触的内径千分尺所有的ROCH ALESMETER 让你不仅能够测量通孔和盲孔还有短台阶孔。应用范围为6到10mm的型号除外。
|
订货代号 |
测量范围 |
分度值 |
最大允许误差 |
尺寸 |
|
|
|
|
|
mm |
mm |
um |
Amm |
Bmm |
Cmm |
Emm |
|
0081725001 |
6-8 |
0.001 |
4 |
1.2 |
3 |
54.5 |
107 |
|
0081725003 |
8-10 |
0.001 |
4 |
1.2 |
3 |
54.5 |
107 |
|
0081725006 |
10-12.5 |
0.001 |
4 |
0.3 |
6.5 |
64.5 |
117 |
|
0081725008 |
12.5-15 |
0.001 |
4 |
0.3 |
6.5 |
64.5 |
117 |
|
0081725010 |
15-17.5 |
0.001 |
4 |
0.3 |
6.8 |
64.5 |
117 |
|
0081725012 |
17.5-20 |
0.001 |
4 |
0.3 |
6.8 |
64.5 |
117 |
|
0081725014 |
20-25 |
0.001 |
4 |
0.3 |
8.5 |
70 |
122.5 |
|
0081725016 |
25-30 |
0.001 |
4 |
0.3 |
8.5 |
70 |
122.5 |
|
0081725018 |
30-35 |
0.001 |
4 |
0.3 |
8.5 |
70 |
122.5 |
|
0081725020 |
35-40 |
0.001 |
4 |
0.3 |
8.5 |
70 |
122.5 |
|
0081725022 |
40-50 |
0.001 |
4 |
0.3 |
14.5 |
108.7 |
188.7 |
|
0081725024 |
50-60 |
0.001 |
5 |
0.3 |
14.5 |
108.7 |
188.7 |
|
0081725026 |
60-70 |
0.001 |
5 |
0.3 |
14.5 |
108.7 |
188.7 |
|
0081725028 |
70-85 |
0.001 |
5 |
0.3 |
14.5 |
126.7 |
206.7 |
|
0081725030 |
85-100 |
0.001 |
5 |
0.3 |
14.5 |
126.7 |
206.7 |
|
0081725032 |
100-125 |
0.01 |
7 |
0.3 |
30 |
153.7 |
233.5 |
|
0081725034 |
125-150 |
0.01 |
7 |
0.3 |
30 |
153.7 |
233.5 |
|
0081725036 |
150-175 |
0.01 |
8 |
0.3 |
30 |
153.7 |
233.5 |
|
0081725038 |
175-200 |
0.01 |
8 |
0.3 |
30 |
153.7 |
233.5 |
|
0081725040 |
200-225 |
0.01 |
9 |
0.3 |
30 |
153.7 |
233.5 |
|
0081725042 |
225-250 |
0.01 |
9 |
0.3 |
30 |
153.7 |
233.5 |
|
0081725044 |
250-275 |
0.01 |
9 |
0.3 |
30 |
153.7 |
233.5 |
|
0081725046 |
275-300 |
0.01 |
9 |
0.3 |
30 |
153.7 |
233.5 |
|
因测量工件与千分尺的前端非常接近因而不适用于10mm以上型号 |
三线接触的内径千分尺所有的ROCH ALESMETER 让你不仅能够测量通孔和盲孔还有短台阶孔。应用范围为6到10mm的型号除外
